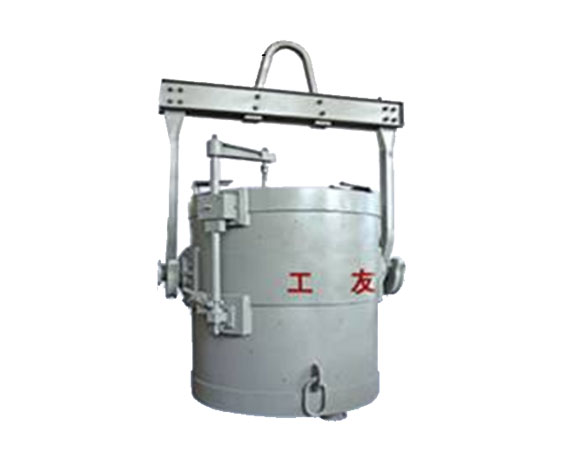

Irrigated steel package
Irrigated steel package
The main specifications / technical parameters


Capacity(T) Diameter φ(mm) Height(mm) Itinerary Size of appearance(LXWXH) (mm)
0.5 644 740 30-40 1230×750×1600
1 770 900 30-40 1225×850×1955
1.5 870 1000 30-40 1425×1144×2150
2 950 1100 40-50 1560×1160×2210
2.5 1040 1160 40-50 1615×1080×2430
3 1132 1210 40-50 1688×1382×2530
4 1224 1330 40-50 1710×1390×2700
5 1293 1380 50-60 1880×1410×2865
6 1408 1440 50-60 1980×1510×3275
8 1550 1720 70-80 2450×1655×3510
10 1629 1800 70-80 2530×2190×3680
15 1875 1990 100-120 2600×2240×4020
20 1985 2230 100-120 2785×2350×4560
25 2128 2460 120-140 2888×2469×4900
30 2204 2580 120-140 2960×2680×5070
35 2298 2740 120-140 3058×2820×5180
45 2485 2750 120-140 3360×3040×5330
50 2600 2980 滑动水口 3500×2680×6000
60 2657 3100 滑动水口 3560×2800×6500
70 3050 3750 滑动水口 4020×3160×6980
